Haproxy within Pfsense and Aapanel

davoud.najjari

I want to know How I can load URL (HTTPS://aapanel-mydomain.com:7800/xyzmn111) from my browser to redirect my request sent to Aapanel behind Pfsense.

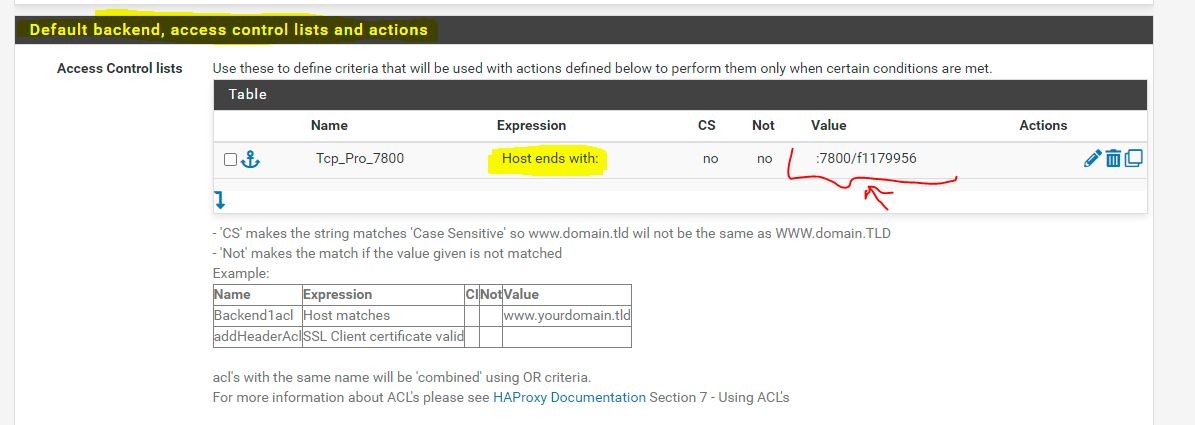

in frontend I have created ACL with a path containing (:7800/xyzmn111) but it doesn't work properly
anybody kkows how do I fix it?

aaPanel_Kern

davoud.najjari
Hello, has aapanel turned on SSL? Is your network in nat mode? If aapanel-mydomain.com points to Pfsense's ip? Does Pfsense have a route mapped to aapanel?

davoud.najjari

Hi ,

Has aapanel turned on SSL ?
No
because the domain must be set before enabling the SSL feature, and after enabling a panel doesn't work !

Is your network in nat mode?
Yes, my wan network is in a NAT mode but Aapanel exited on the LAN network like Pfsense LAN network.

If aapanel-mydomain.com points to Pfsense's IP?
Yes, Aapane-mydomain.com point to the Pfsense WAN address

Does Pfsense have a route mapped to aapanel?

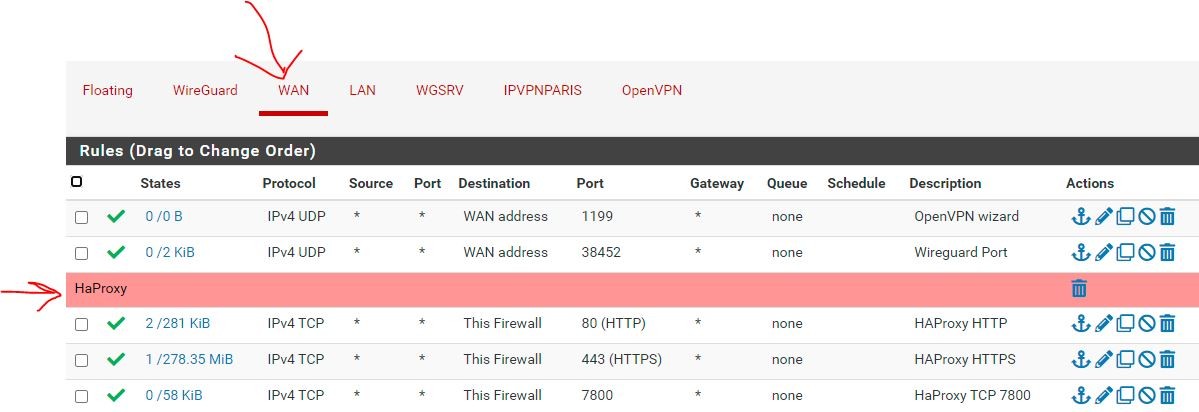

Yes, attached please find below the JPG file for my Firewall rule configuration

Would you please advise?

Kind regards

aaPanel_Kern

davoud.najjari
Can it be accessed using http?

davoud.najjari

aaPanel_Kern

503 Service Unavailable
No server is available to handle this request.

aaPanel_Kern

davoud.najjari

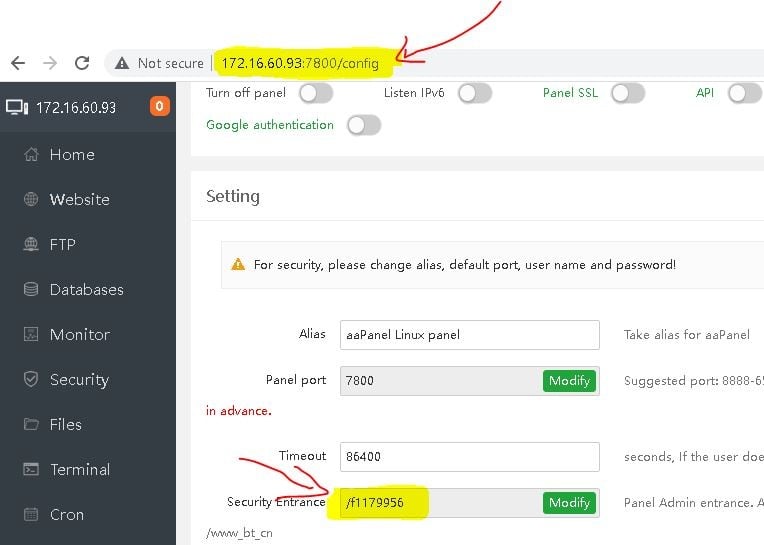

The link you visited is incorrect? http://wan_ip:7800/f1179956
This is? try to remove?
